| Standard Specifications | Optional Specifications |
| Length | 20’ – 40’ | Length | |
| Width | 7’ | Width | 6’ 8”, 7’ 6”, 8’, 8’ 6” |
| Height | 6’ 6” | Height | 7’, 7’ 6”, 8” |
| Nose Configuration | 4’ Taper3003 Aluminum – 0.100 Thicko Welded to Side Posts NOT Riveted | Nose Configuration | Vee NoseFull WidthBlack, White, Stainless Overlays |

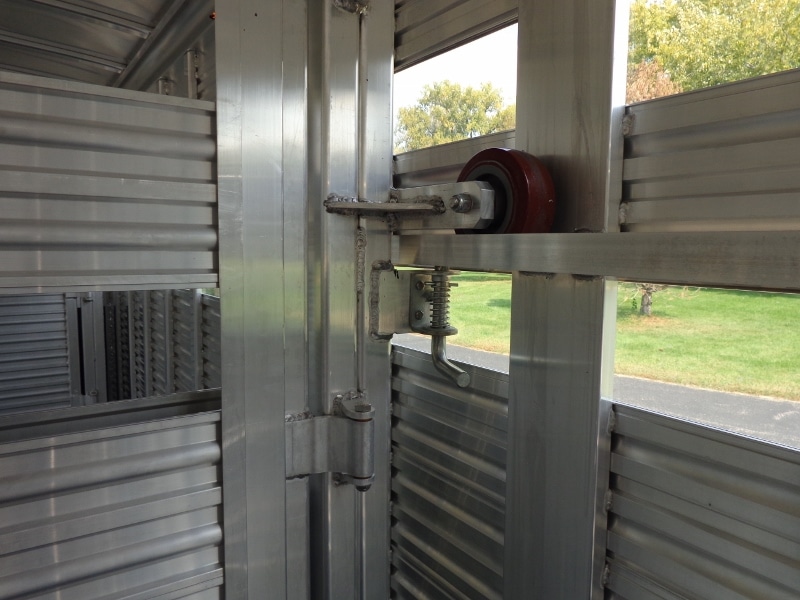

| Center Gate | One (1) w/ Swing Walk Thru DoorHold Up Blocks – Open & Shut PositionsHD Slam Latch – Cast AluminumOutside Slam Latch Release HandleFour (4) HD Extruded Hinges w/ Replaceable Brass Bushings and Stainless Steel Bolt | Center Gate | Two (2) or Three (3) GatesSlider DoorAir Gaps per Customer’s RequestRolling Center GatesSlanted Center Gates |
| Escape Door | RH 30” WidePressure Latch-Cast Aluminum | Escape Door | LH SideUp to 48” WideAccess Hole to Latch from inside |
| Rear Gate | Single Swing Gate w/ Slider DoorFive (5) HD Extruded Hinges w/ Replaceable Brass Bushings and Stainless Steel BoltCam Latch w/ Safety ChainTwo Top Air Gaps | Rear Gate | Double Swing (Both Ways) w/ Slider DoorRoll Up Rear DoorDouble DoorsFull Rear Door (No Slider Door or Air Gaps)4’ Ramp Behind Rear Gate4’ Ramp w/ 2 Top Swing Doors |
| Side Doors | · | Side Doors | 6’ Ramp w/ Torsion Spring Assist4’ Ramp w/ 2 Top Swing DoorRubber Mat on Ramps |
| Side Walls | 1/8” Extruded 6005A Panels1”x2-1/2” Side Posts on 16” Center1”x5” Side Posts at Gate Locations, Front and Rear of Subframe, Horizontal over Subframe, Directly Behind Drop SheetTwo (2) Top Air Gaps – Approx. 5-1/2” Wide | Side Walls | Air Gaps per Customer RequestSmooth Aluminum ExteriorRumbar (Poly) Interior Lining (Required w/ Smooth Exterior Alum.)Drop Down Windows w/ BarsDrop Down Feed Doors |
| Floor | Traction Floor – Extruded 1-1/2”x8” Interlocking Tongue and Groove | Floor | Crimped Extruded FloorDiamond Tread w/ V CrimpsRubber Floor Mats |

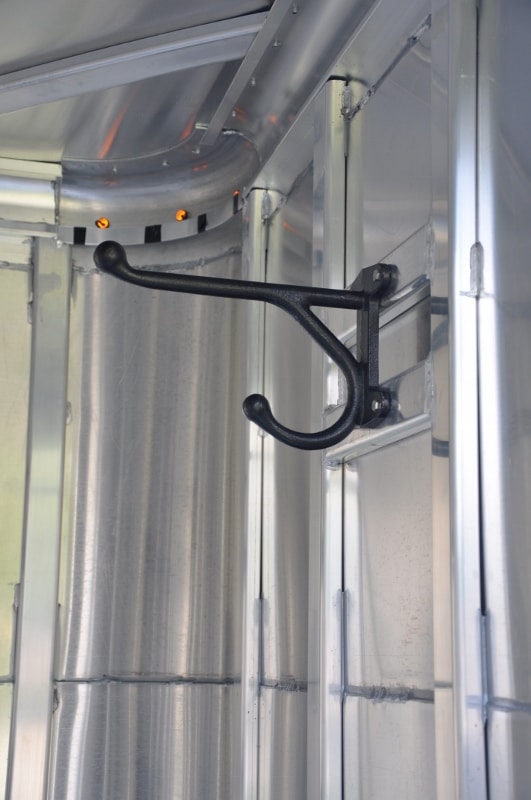

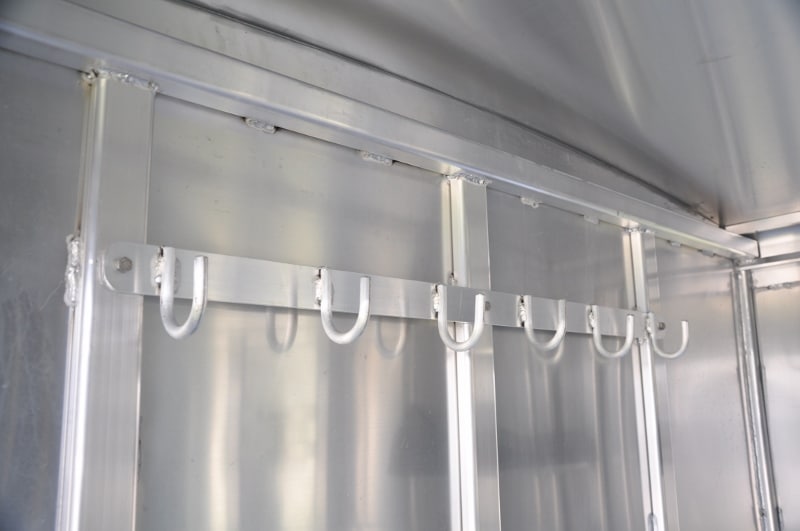

| Tack Room | · | Tack Room | Tack Wall – Straight or SlantedDoor Access From Tack to Livestock AreaCommercial Ext. Door w/ Window & ScreenCCT Exterior DoorInterior Lights per Customer RequestGooseneck WindowsCarpeted Gooseneck Floor and DropHalter and Harness HooksBlanket Bar2, 3 or 4 Tier Saddle RacksCabinets, Counter Top, CupboardsRefrigerator, MicrowaveAir Conditioning110 AC Electric ServiceCrank up Roof Vents |
| Stall Dividers | CCT Spring Loaded Slam Latch | Stall Dividers | Open Bar Divider (Head Area)Closed Bar Divider (Head Area)Fixed or Sliding Length DividerPaddedPadded Chest & Butt Bars/ChainsStud Gate |
| Axles | Two (2) Dexter 7,000# on 20’ – 26’ Trailers, Electric Brakes, Grease Hubs, ST235/75Rx16 Tires, Steel WheelsTwo (2) Dexter 8,000# on 28’-34’ Trailers Electric Hydraulic/Brakes, Grease Hubs, 235/75Rx17.5 Tires, Steel WheelsTwo (2) Dexter 10,000# on 36’ – 40’ Trailers Electric/Hydraulic Brakes, Grease Hubs 235/75Rx17.5 Tires, Steel Wheels | Axles | Three (3) AxlesElectric/Hydraulic BrakesDisc BrakesOil Bath HubsEasy Lube HubsChrome Hub and Nut CoversAluminum WheelsStainless Steel Simulators14 Ply Tires |
| Fenders | 8” Board Fender on 7’ Wide5” Smooth Fender on 7’ 6” Wide2-1/2” Smooth Fender on 8” WideSmooth Teardrop Fender on 6’ 6” Wide | Fenders | Diamond Tread Teardrop on 6’ 6” Wide |
| Step/Tie Rails | · | Step/Tie Rails | 5” Solid Step Rail w/ Anti-Skid TapeOpen Tube Step/Tie Rail |
| Tie Hooks/Rods | · | Tie Hooks/Rods | Interior or Exterior Tie RingInterior Roof Rail Tie LoopInterior Tie Rod – Any Length |
| Vents | Two (2) Top 5-1/2” Air Gaps | Vents | Multiple Air Gaps per Customer RequestOptional Bottom 3” Air Gap – No ChargeDrop Sheets Vents w/ Cover Door and BarsGooseneck Vent w/ Cover Door and BarsTwo Way Roof VentsSliding Corner Vents on Full Width TrailersDrop Sheet Vent Deflector |
| Vent Covers | | Vent Covers | Lexan in Any or All Side and Rear Air GapsHinged Aluminum Cover PanelsNon-Hinged Panels Attached w/ Screws |
| Lights | One (1) Interior Light w/ Switch on 20’ TrailerTwo (2) Interior Lights w/ Switch on 24’ and LongerFour (4) LED Stop/Turn/Tail Lights on Rear2” Round LED Rear Marker Lights¾” LED Button Side and Front Marker Lightso Three Center Front Marker Lightso Three Marker Lights Down Each Side | Lights | Two (2) Back Up Lights – 6” LED OvalTwo (2) Rear Load Lights – 6” LED OvalSide Roof Rail LightsAbove or Below Fender Marker/Turn LightsAdditional ¾” LED Side Marker Lights |
